• Product introduction

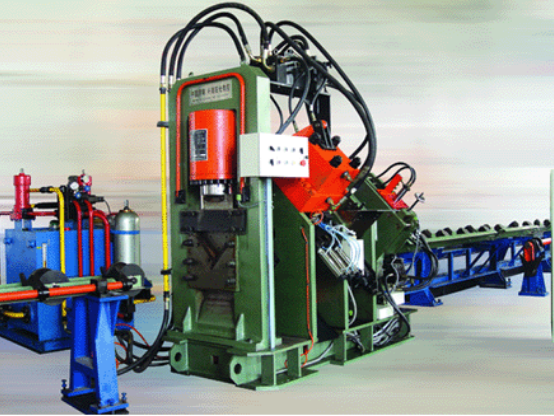

  Yjx-2020 processing angle steel range: L63 х 4 ～ L200 х 20 (16Mn)Yjx-2016 processing angle steel range: L63 х 4 ～ L200 х 16 (16Mn)Processing range of type jl140-1412I. scope of applicationThis machine is a special equipment for angle steel tower of power telecommunication to type, punch, cut and produce angle steel automatically. It can be used in the whole range of typing, punching and shearing with the angle steel model of L63 х 4 ~ L200 х 20 and its length within 12 meters.Structure and performanceThe machine is composed of six parts: feeding part, feeding part, host part, finished product blanking part, hydraulic power part and electrical control part.3. Product advantagesA. the equipment has strong rigidity and compact structure;B. typing, punching, cutting, sorting and stacking are automatically carried out with high production efficiency;C. when programming, you only need to input the size, aperture, standard distance and number of workpieces, and can also form a LAN with the design department to share data resources;D. a number of measures have been taken to solve the feeding difficulties and alignment errors caused by angle steel bending;E. optimize the layout process, with high material utilization rate;F. reduce the labor intensity of workers and ensure the accuracy and stability of the workpiece.4. Technical featuresA. integration of machinery, electricity, gas and liquid;B. computer control and servo motor feeding;C. The standard distance is arbitrarily set, and the number of punching rows is unlimited;D. It is easy to program and can directly use the program data generated by lofting software;E. graphic display of machining parts;F. the angle steel can also adapt to large bending;G. the main electrical parts, hydraulic and pneumatic components are imported products.

• Technical specifications / parameters
