• Product introduction

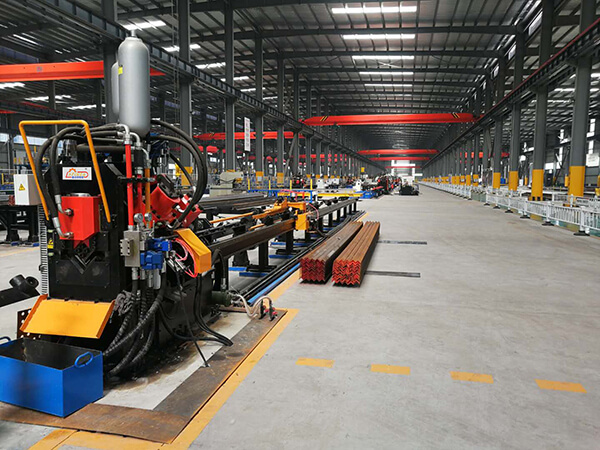

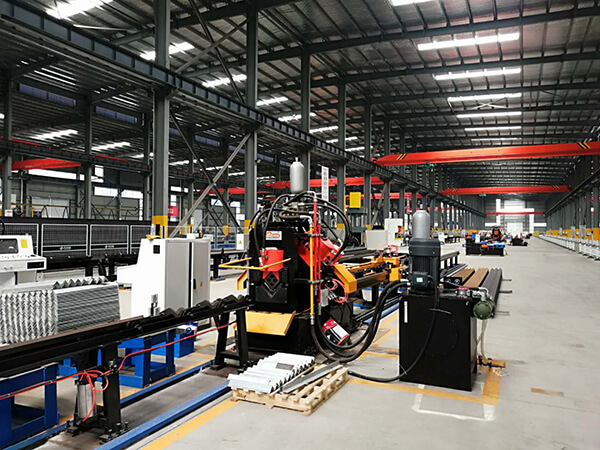

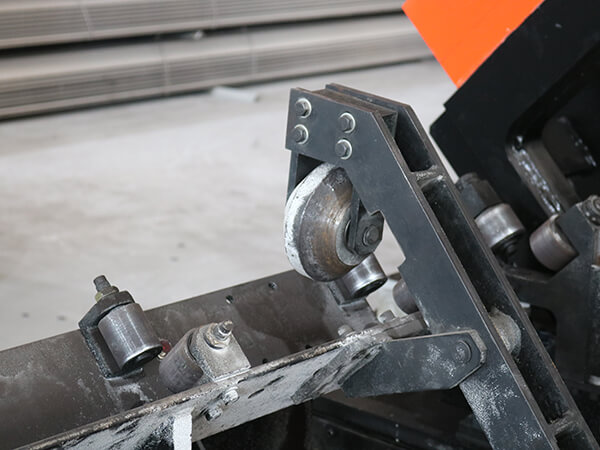

  1、 Equipment introductionYjx-1010 new high-speed CNC punching, typing and shearing production line for angle steel belongs to high-speed angle steel production line. It is a high-efficiency angle steel production line newly developed by our company in line with the purpose of "keeping pace with the international standards and keeping pace with the world" and combining with the existing materials, equipment, staff skills and other factors in China. It has the advantages of high processing efficiency, high processing accuracy, low failure rate, wide range of products, less land occupation, multiple functions, easy operation, etc. it is the preferred product for angle steel processing enterprises.2、 Equipment advantages1. The main engine and hydraulic station adopt integrated design2. Equipped with high speed electrical and hydraulic system3. The feeding trolley is guided by precise linear guide rail and driven by precise rack and pinion4. The shear unit adopts single edge cutting

• Technical specifications / parameters

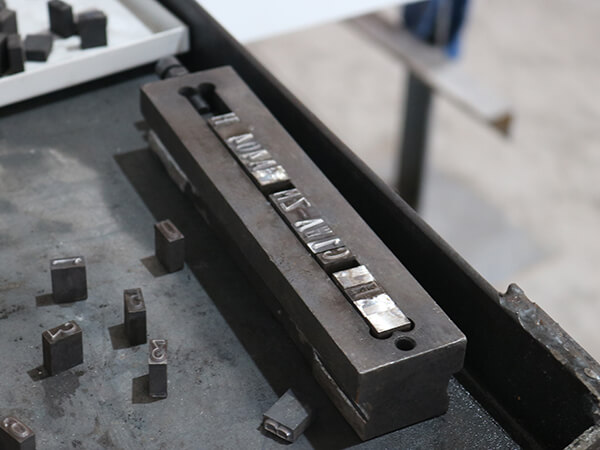

  technical parameterModel & nbsp;YJX-1010Machinable angle steel rangeL40×40×3——L100×100×10mmMaximum punching diameterΦ25.5mm Fastest punching frequency60 times / min Nominal punching force 600kN Nominal typing force 1000 kN Cut off nominal force1200kNMaximum blank length 12m Number of punches per side 2 Number of punching rows on each sidearbitrarilyNumber of print prefix groups4 groups Prefix size 14×10×19mm Cut off mode Single edge cutting Number of NC axes 3 axis Feeding speed of angle steel The fastest speed is 90m / min Maximum length of finished material channel 6m or according to user requirementsMachining accuracyComply with GB / T & nbsp; 2694-2010
