• Product introduction

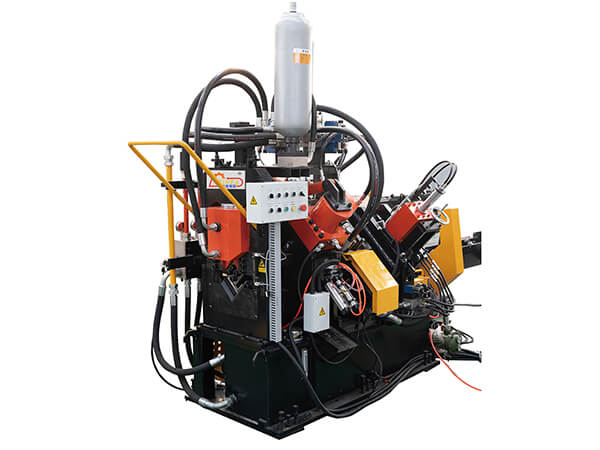

  1、 Equipment introductionYjx-1612 new high-speed CNC punching, typing and shearing production line for angle steel is a high-speed angle steel production line. It is a high-efficiency angle steel production line developed by our company in line with the purpose of "keeping pace with the international standards and keeping pace with the world" and combining with the existing materials, equipment and staff skills in China. It has the advantages of high processing efficiency, high processing accuracy, low failure rate, wide range of products, less land occupation, multiple functions, easy operation, etc. it is the preferred product for angle steel processing enterprises.  2、 Equipment advantagesCompared with ordinary angle steel production line, the new high-speed angle steel production line has the following advantages: 1. The main engine and hydraulic station adopt integrated design2. Equipped with high speed electrical and hydraulic system 3. The feeding trolley is guided by precise linear guide rail and driven by precise rack and pinion 4. The shear unit adopts single edge cutting

• Technical specifications / parameters

  Technical specifications and main technical parameters of equipment1. Machinable angle steel range: L40 & times; 40 & times; 3 & mdash; L160 & times; 160 & times; 12mm (8mm, Q345)2. Maximum punching diameter: & phi; 25.5mm3. The fastest punching frequency is 60 times / min4. Nominal punching force: 600kN5. Nominal typing force: 1000 kn6. Nominal cutting force: 1500KN (single edge shear)7. Maximum blank length: 12m8. Number of punches per side: 29. Number of punching rows on each side: any10. Number of prefix groups: 411. Prefix size: 14 & times; 10 & times; 19mm12. Cutting mode: single edge cutting13. Number of NC axes: 3 axes14. Feeding speed of angle steel: the fastest is 90m / min15. The finished material channel is the same as the FA Yin, and the turning material is in the form of motor and reducer.16. Maximum length of finished material channel: 6m or according to user requirements17. Machining accuracy: in accordance with GB / T & nbsp; 2694-2010 & nbsp;18. Programming mode: keyboard input, USB interface input19. Lubrication mode: equipped with automatic lubrication.20. Equipment running direction: selected by customer
