• Product introduction

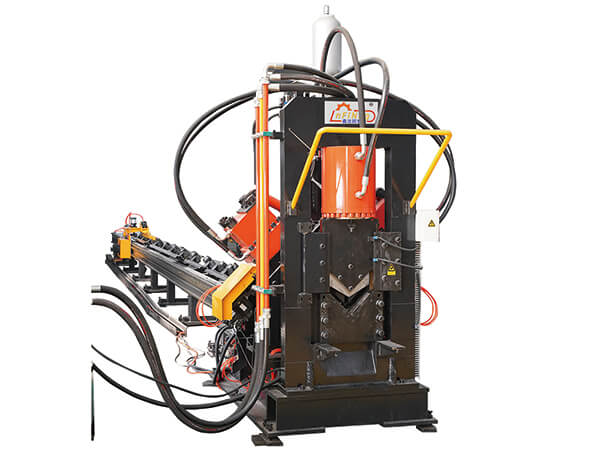

  1、 Equipment introductionYjx-2020 CNC angle steel punching, typing and shearing production line is a fast type angle steel production line. It is a high-efficiency angle steel production line newly developed by our company in line with the purpose of "in line with the international standards, keeping pace with the world" and combining with the existing materials, equipment, staff skills and other factors in China. It has the advantages of high processing efficiency, high processing accuracy, low failure rate, wide range of products, less land occupation, multiple functions, easy operation, etc. it is the preferred product for angle steel processing enterprises. 2、 Equipment advantagesCompared with the original angle steel production line, the production line has the following advantages:1. The product can be used more widely2. The main engine and hydraulic station adopt integrated design3. Equipped with high speed electrical and hydraulic system4. The feeding trolley is guided by precise linear guide rail and driven by precise rack and pinion.5. The shear unit is of double edge cutting mode

• Technical specifications / parameters

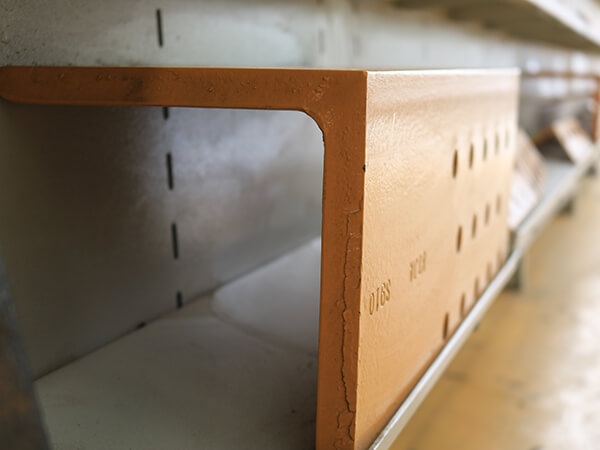

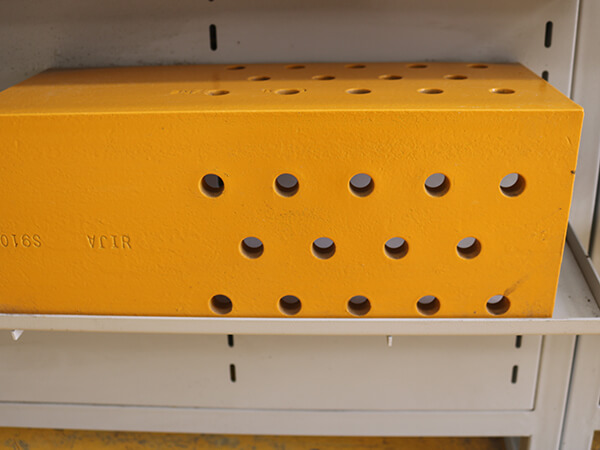

  technical parametermodelYJX-2020Processing range of angle steel∠56×3 - ∠200×20mmMaximum punching diameterΦ 25.5mm & nbsp; (16mm thick, Q345)Punching force1000kNNumber of punches per sideThreeTyping power700kNPrefix size: (length & times; width & times; height)14×10×19mm Maximum blank length12 mLength of finished material channel10m Cut off modeDouble edge cutting / single edge cuttingCutting force1500kN Number of NC axes3 axis Feeding speed of angle steelThe fastest is 90 meters per minuteProgramming modeKeyboard input, USB interface inputMachining accuracyMeet the requirements of GB / t2694-2010Lubrication modeEquipped with automatic lubricationProgram functionFault display & nbsp; real & nbsp; time & nbsp; fault & nbsp; display & nbsp;
